Add a Part Group

The Part Groups functionality in Assetminder is used to associate related parts.  There are both Part Groups and Part Sub-Groups.

The Part Group is the higher level, such as a part group for engine components.  The Part Sub-Groups are the items / components that make up the Parts Group.

---

NOTE

To complete this procedure will require user access  permission to the Administration function.



---

PROCEDURE

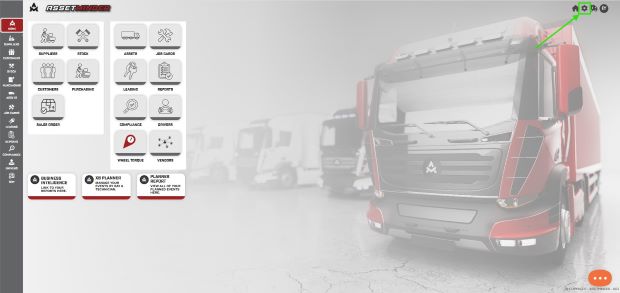

Access the Administration tools by clicking on the ADMINISTRATION SETTINGS icon on the top right-hand corner of the page (as indicated below).

From the Administration page, click:

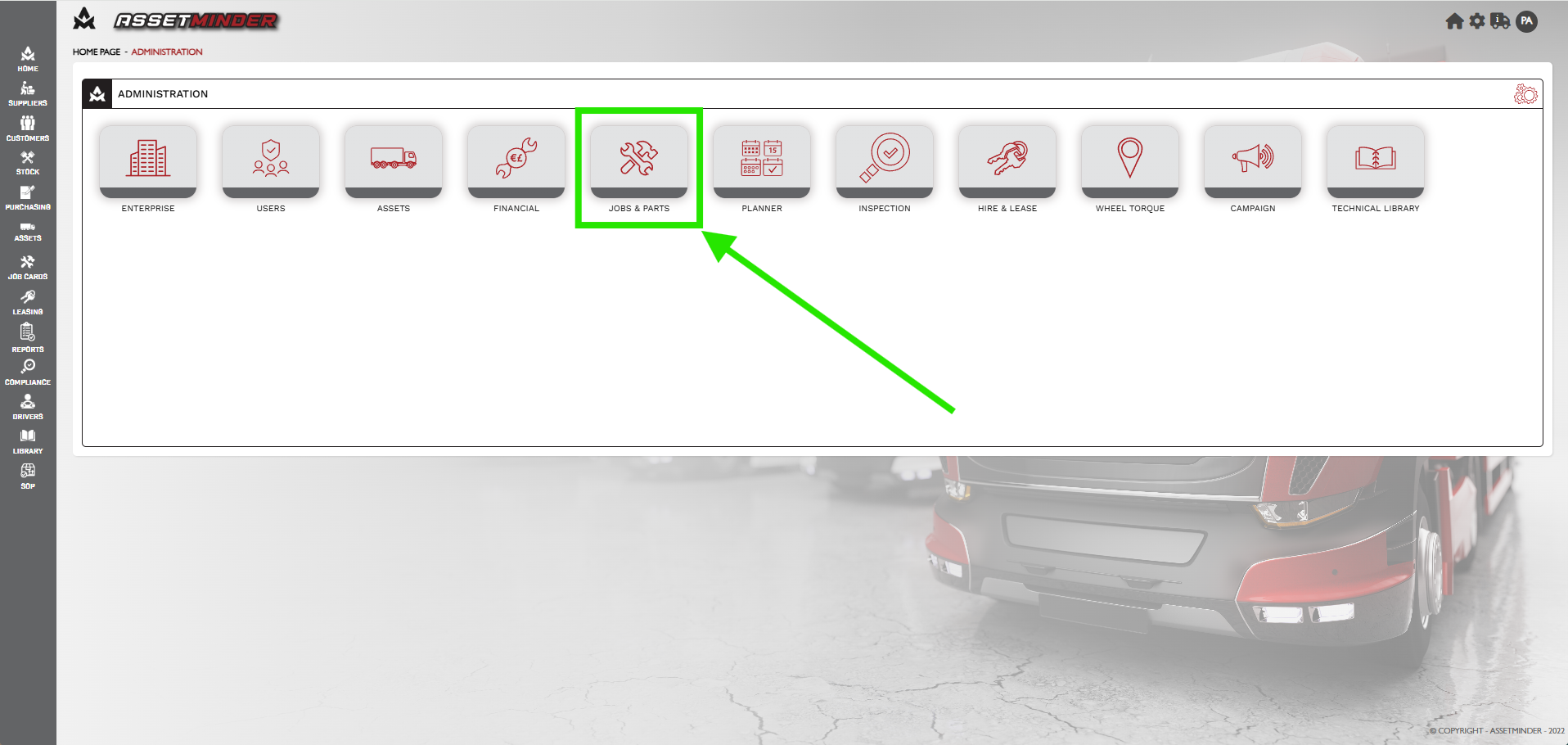

1. JOBS AND PARTS, then, on the next page;

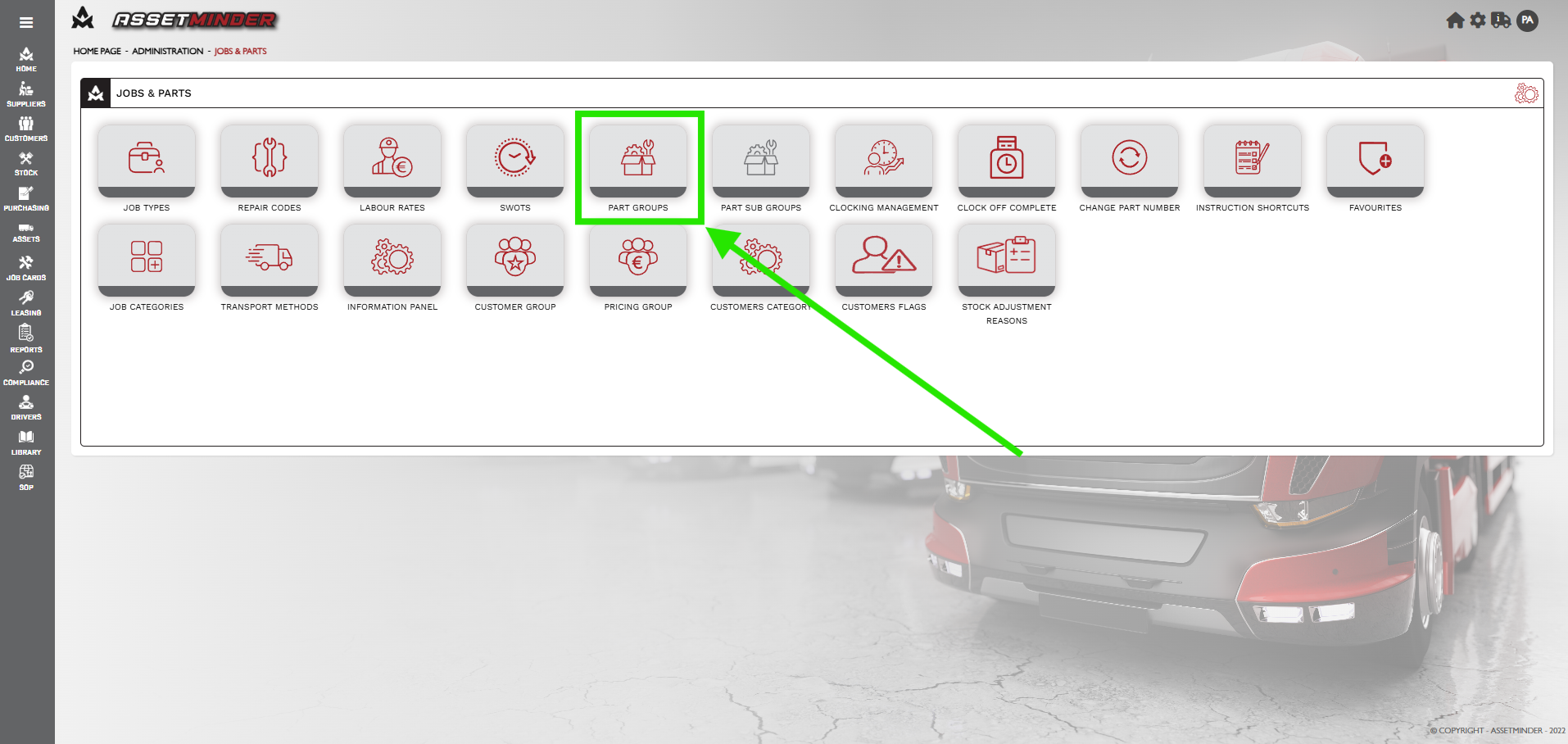

2. PART GROUP, then, on the next page;
3. NEW PART GROUP

The following page will be shown.

Before adding anew part group, the user can click on SHOW ALL PARTS GROUPS to view the groups already existing in Assetminder.

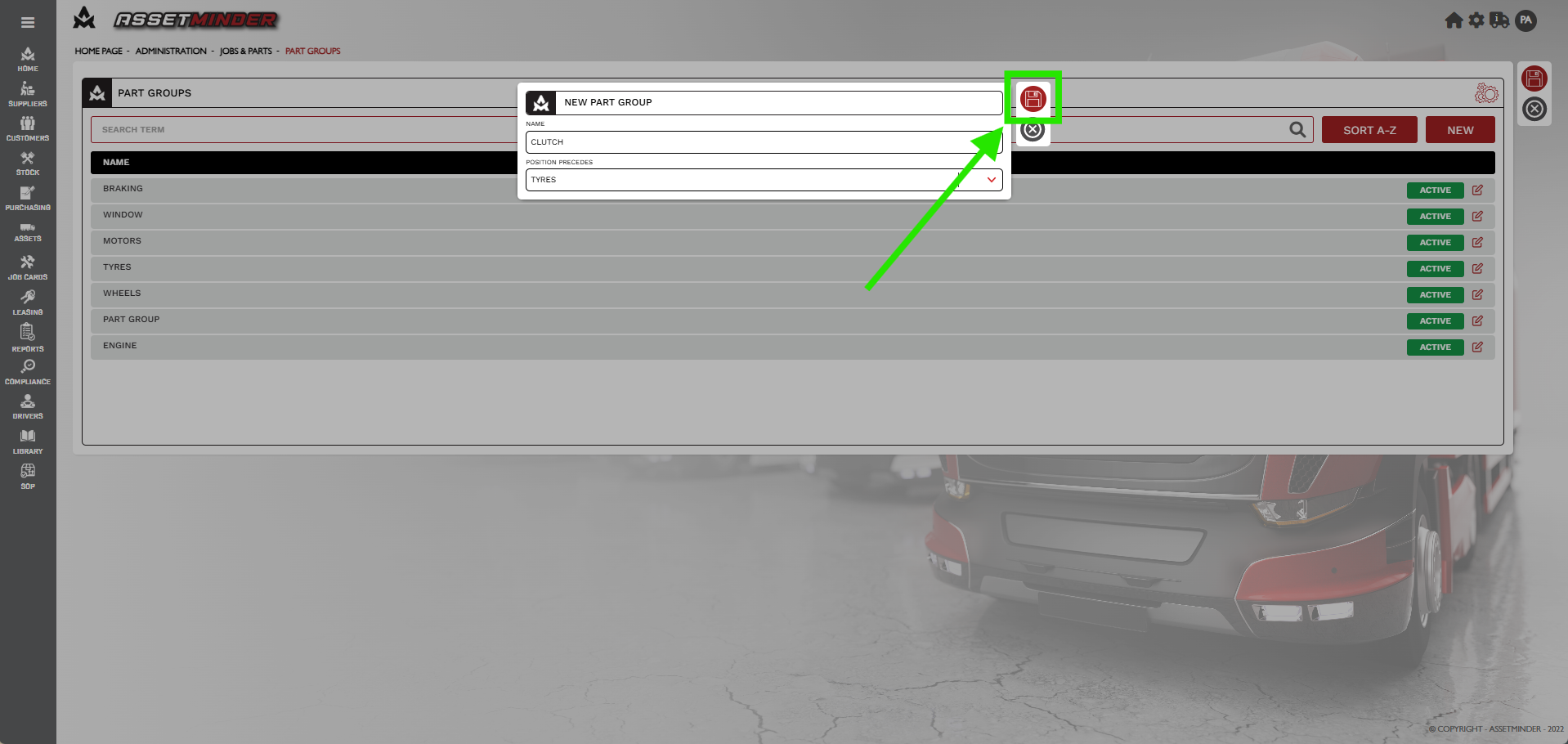

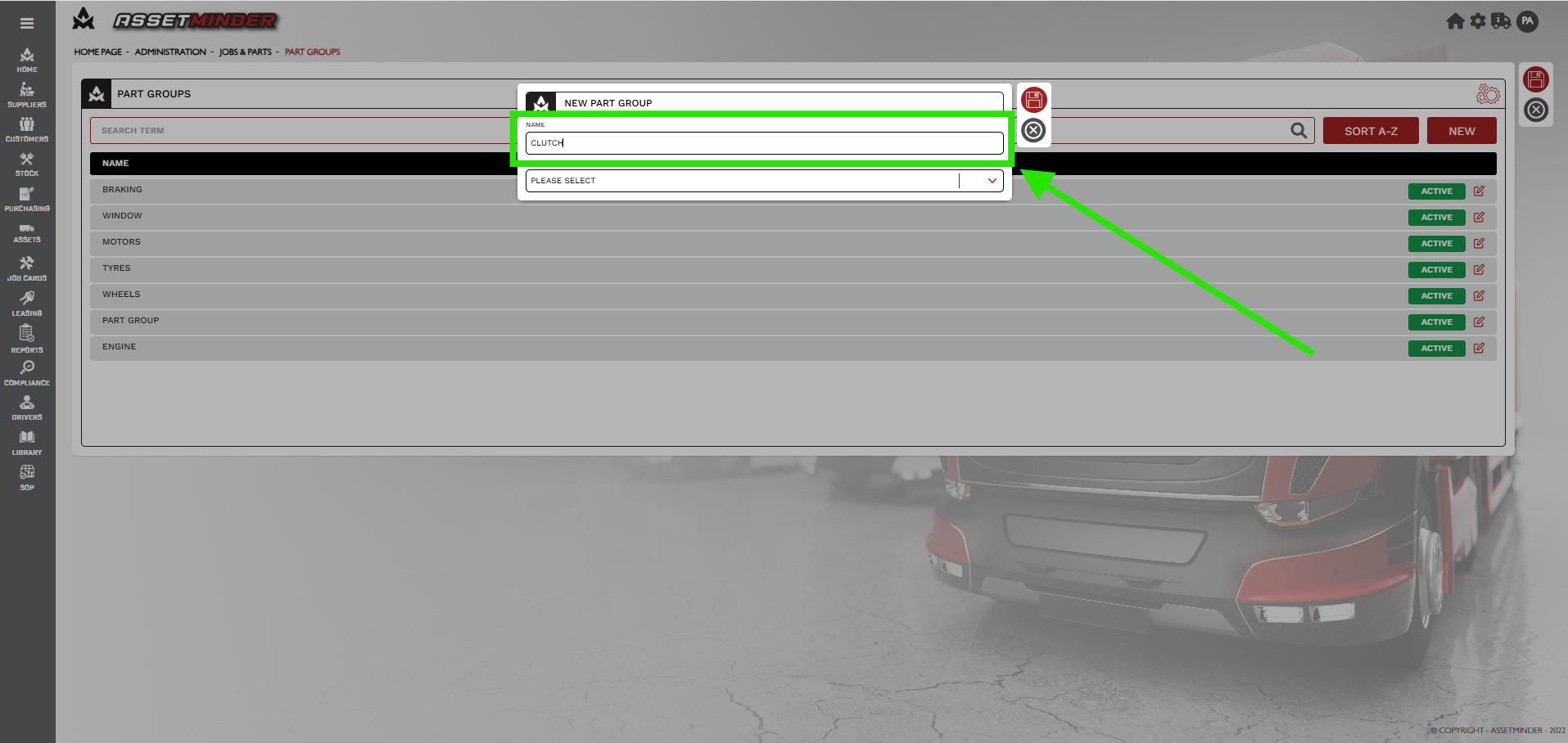

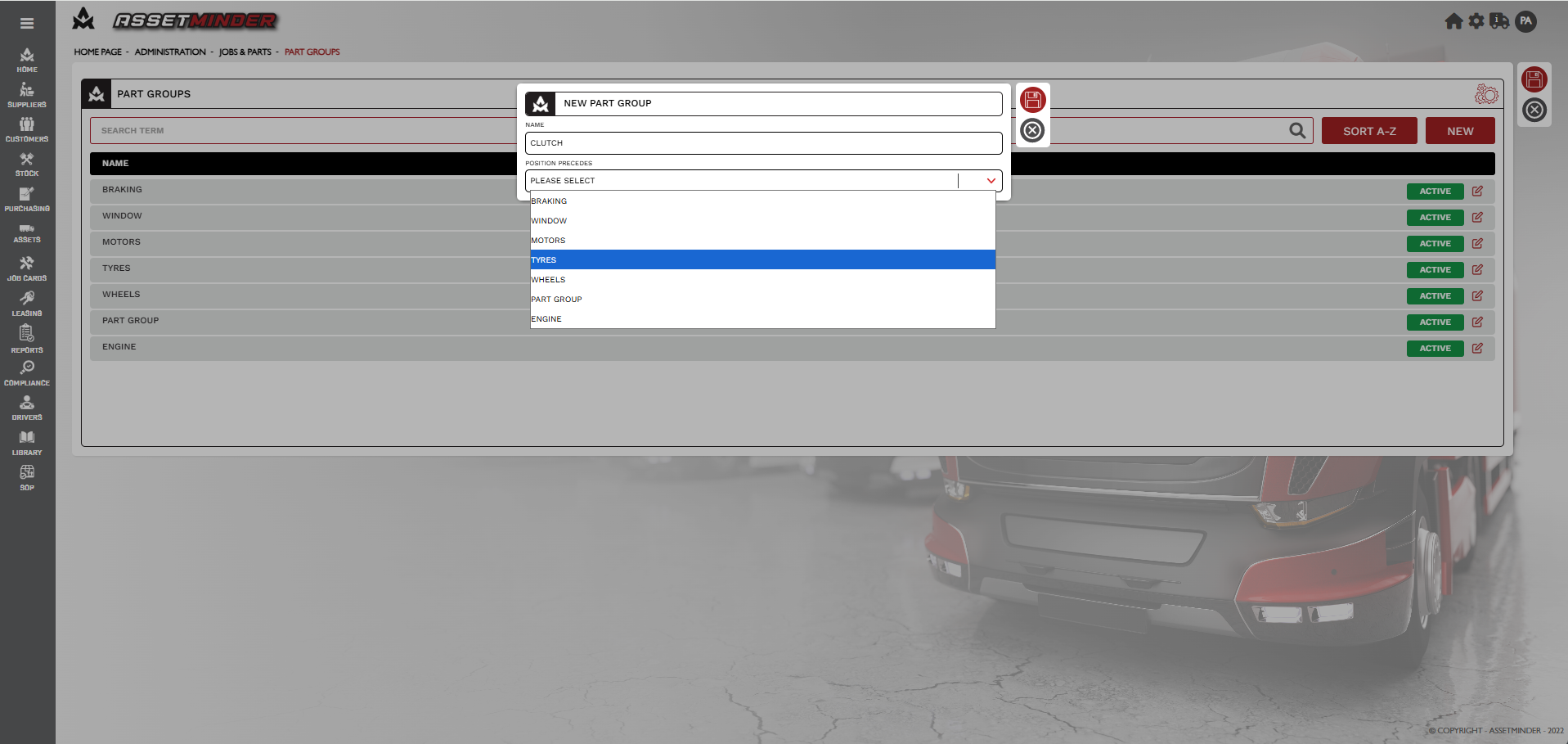

To add the new PART GROUP, enter the name of the new PART GROUP and click to SAVE.
